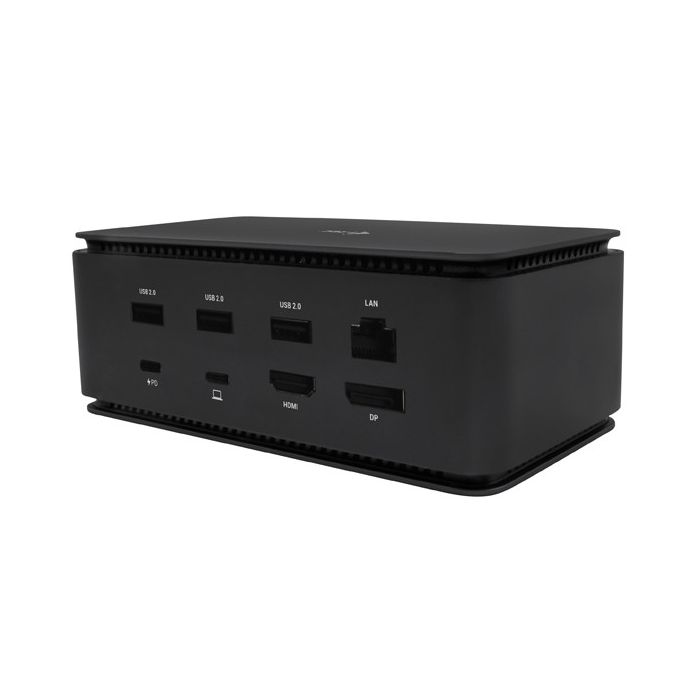

i-Tec USB-4 Metal Docking Station Dual 4K HDMI DP + PD 80W

i-Tec USB-4 Metal Docking Station Dual 4K HDMI DP + PD 80W

This i-Tec docking station is made to integrate crystal clear picture quality, high-speed Internet and the ability to transfer data at speeds over 1 GB per second into a simple and reliable device. Even when using multiple USB ports simultaneously, performance will be top notch. Of course, you can also connect your headphones or audio and charge your laptop (80W), all with one cable.

High resolution on multiple displays

The integrated DP 1.4 protocol allows you to connect the dock to a monitor with a resolution of up to 8K (7680 x 4320) with a refresh rate of 30 Hz. This makes it the ideal solution for graphic designers, analysts, developers, film editors and enthusiasts of high-definition video.

USB-4 and Thunderbolt 3/4 support

Thanks to backwards USB4 technology compatibility, you can connect this dock not only to laptops and tablets with USB4, but also to Thunderbolt 3/4 and USB-C should video transfer support. This makes the dock an ideal and flexible solution for businesses and users using laptops and tablets with different ports.

Connections with display (Resolution):

- USB4/Thunderbolt 3/Thunderbolt 4 with DisplayPort 1.4 support.
-1 monitor - 1x HDMI/DP up to 8K/30Hz
-2 monitors - HDMI+DP up to 2x4K/60Hz

- Thunderbolt 3 with DisplayPort 1.2 support
-1 monitor - 1x HDMI/DP up to 5K/60Hz
-2 monitors - HDMI+DP up to 2x4K/60Hz

- USB-C with DisplayPort 1.4 DSC support
-1 monitor - 2x DP - up to 5K/60Hz
-1 monitor - 1x DP or 1x HDMI - up to 4K/60Hz
-2 monitors - 1x HDMI + 1 DP - up to 2x 4K/60Hz

-USB-C with DisplayPort 1.4 support without DSC support
-1 monitor - 1x DP or 1x HDMI - up to 4K/60Hz
-2 monitors - 1x HDMI + 1 DP - up to 2x 2560×1440/60Hz

-USB-C with DisplayPort 1.2 support
-1 monitor - 1x DP or 1x HDMI - up to 4K/30Hz
-2 monitors - 1x HDMI + 1 DP - up to 2x 1920×1080/60Hz

Other connections + cables

- 1x USB-C 3.2 Gen. 2 port (data only)
- 3x USB-A 3.2 Gen. 2 port with support for fast charging (BC 1.2)
- 3x USB 2.0
- 1x Ethernet GLAN RJ-45 port (ASIX AX88179)
- 1x SD/microSD slot
- 1x 3.5mm audio combo jack
- USB4 cable (80 cm)

Compatibility

- 8K resolution must be supported by the connected laptop or tablet.
- MacOS supports only one external monitor
